How Medical Injection Molding Is Transforming Healthcare Industry
Explore the vital role of medical injection molding in the healthcare industry, from its benefits and applications to the future of manufacturing in this essential field.
Introduction
Medical injection molding is a critical manufacturing process that enables the production of complex medical devices and components with precision and efficiency.
As the healthcare sector continues to evolve, the demand for innovative, high-quality medical products has surged. This article delves into the significance of medical injection molding, its applications, advantages, and future trends in the healthcare industry.
What is Medical Injection Molding?
Medical injection molding is a manufacturing technique used to create precise plastic parts for the medical field. The process involves injecting melted plastic into a mold under high pressure, where it cools and solidifies into the final product.
This method is ideal for making items like syringes, surgical tools, and diagnostic devices due to its ability to produce complex shapes with high accuracy and consistent quality.
Visit our metal injection molding (MIM) page to learn more.
Key Steps in the Injection Molding Process
Material Selection: Choosing suitable medical-grade plastics based on their properties and safety standards.
Machine Setup: Loading the plastic into a heated barrel where it melts.
Injection: Forcing the molten plastic into the mold at high pressure.
Cooling: Allowing the plastic to cool and harden in the mold.
Ejection: Opening the mold and removing the finished part.
Post-Processing: Additional steps like trimming or assembling may be needed.
Comparison with Other Manufacturing Methods
Method | Process | Pros | Cons |
|---|---|---|---|
Traditional Machining | Cutting material from a solid block | Highly detailed and precise | Slow for mass production |
3D Printing | Building parts layer by layer | Rapid prototyping, complex shapes | Slower production, may lack precision |
Injection Molding | Injecting molten plastic into a mold | High precision, fast, consistent quality, cost-effective for large quantities | Requires upfront tooling, limited design flexibility |
Blow Molding | Blowing air into molten plastic to form hollow shapes | Great for lightweight, hollow objects like bottles | Not suitable for solid, intricate medical parts |
Types of Medical Injection Molding
In medical injection molding, various techniques are employed to produce a wide range of medical devices. Here's a breakdown of some common types:
Standard Injection Molding
This is the most fundamental technique, involving a single injection of molten plastic into a mold cavity to form a desired shape. It's suitable for a vast array of medical devices, from simple components to intricate assemblies.
Gas-Assisted Injection Molding
In this method, a gas is injected into the molten plastic during the filling stage, allowing for the creation of hollow parts with thin walls. This is particularly beneficial for producing lightweight, delicate components like medical tubing and syringe barrels.
Liquid Silicone Rubber (LSR) Injection Molding
LSR injection molding specializes in producing silicone rubber parts, known for their biocompatibility and heat resistance. This technique is commonly used for medical devices such as catheters, seals, and gaskets.
Thin-Wall Injection Molding
This technique involves injecting molten plastic into molds to create parts with exceptionally thin walls. It's ideal for producing lightweight and delicate components like medical packaging and disposable devices.
Multi-Shot Injection Molding
Multi-shot injection molding involves injecting different types of plastic into a single mold in multiple stages. This allows for the creation of complex parts with multiple materials and colors, such as medical devices with integrated electronics.
Micro Injection Molding
Micro injection molding is employed to produce extremely small, precise parts, often in the millimeter or micrometer range. This technique is essential for medical devices like microfluidic devices and implantable sensors.
Medical Injection Molding Materials
This table provides a concise overview of the materials used in medical injection molding.
Material Type | Examples | Common Applications | Key Properties |
|---|---|---|---|
Thermoplastics | Polypropylene (PP) | Syringes, containers | Lightweight, chemical resistance |
Polyethylene (PE) | Bags, tubing | Flexible, impact resistant | |
Polyvinyl Chloride (PVC) | Medical bags, IV products | Versatile, requires biocompatible plasticizers | |
Polystyrene (PS) | Diagnostic devices, lab equipment | Good clarity, easy to mold | |
Engineering Plastics | Polycarbonate (PC) | Device housings, medical equipment | Strong, impact-resistant |
Acrylonitrile Butadiene Styrene (ABS) | Housings, connectors | Tough, easy to process | |
Polyamide (Nylon) | Surgical instruments, fasteners | Durable, chemical resistant | |
Specialty Materials | Biodegradable Polymers | Disposable items | Environmentally friendly |
Elastomers (e.g., silicone) | Seals, soft-touch components | Flexible, biocompatible | |
Composite Materials | Glass-filled plastics | Parts requiring enhanced strength | Improved mechanical properties |
Regulatory Considerations | - | Compliance with FDA, ISO standards | Biocompatibility, sterilization compatibility |
Key Applications of Medical Injection Molding
Medical injection molding serves various critical applications in the healthcare sector, including:
Medical Devices
Injection molding produces a wide range of medical devices, including syringes, surgical instruments, and diagnostic equipment. This process ensures precise, reliable, and sterile products.
Source: zetarmold.com
Packaging Solutions
Molded packaging protects sensitive medical devices from contamination and damage, maintaining their sterility until use.

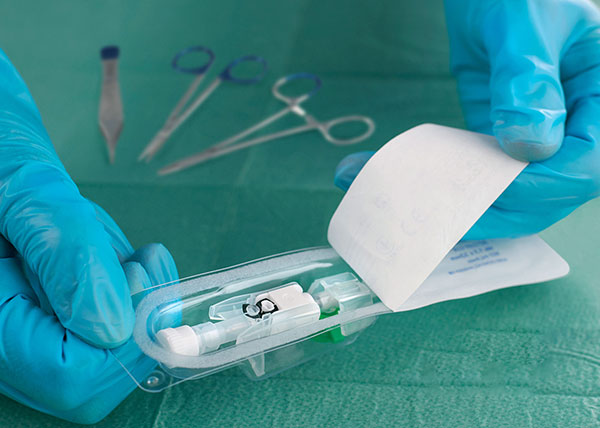

Source: packenpack.com
Implants and Prosthetics
Custom implants and prosthetics, produced through injection molding, are tailored to individual patient needs. This ensures a perfect fit, enhanced comfort, and optimal function.

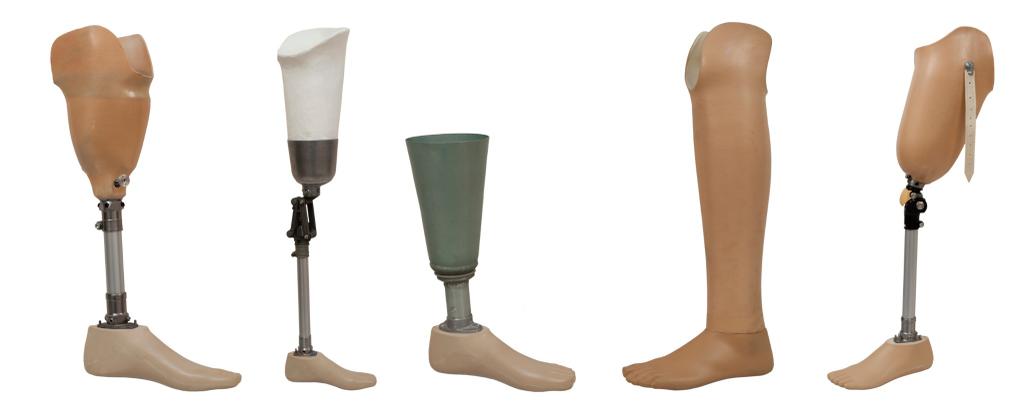

Source: richfieldsplastics.com
Trends in Medical Injection Molding
Micro Molding
Micro molding is growing in popularity due to the increasing demand for miniaturized medical devices, such as tiny implants, catheters, and components for minimally invasive surgeries. Micro-molding requires precise control over materials and machinery to ensure extremely accurate, miniature parts with intricate details.
Biocompatible and Advanced Materials
There’s a shift toward biocompatible polymers that meet ISO 10993 and USP Class VI standards. Advanced materials, like PEEK (polyether ether ketone), thermoplastic elastomers, and bioresorbable polymers, are widely used for implants and devices. These materials offer excellent durability, chemical resistance, and compatibility with the human body.
Sustainable and Biodegradable Materials
Eco-friendly practices are increasingly important in the medical field. Manufacturers are developing biodegradable and recyclable polymers for single-use devices to reduce medical waste. Although challenging due to regulatory requirements, this trend reflects the growing emphasis on sustainability.
Personalized Medical Devices
With the rise of personalized healthcare, there’s more demand for customized parts, like prosthetics, implants, and orthodontic devices. This trend requires flexibility in mold designs, shorter production runs, and quick turnaround times. Combining injection molding with other techniques, like 3D printing, enables manufacturers to meet these demands efficiently.
Best Practices in Medical Injection Molding
Design for Manufacturability (DFM)
Designing parts with manufacturability in mind minimizes potential issues in production. Features like uniform wall thickness, smooth transitions, and optimized gate locations improve mold flow, reduce cycle times, and enhance product durability.
Material Selection and Testing
Careful material selection is essential, and extensive testing ensures compatibility with intended medical applications. Factors like chemical resistance, sterilization methods, and biocompatibility must be considered, along with regulatory standards.
Rigorous Quality Control
Quality control is paramount in medical injection molding. Best practices include strict monitoring of the molding process, statistical process control, and automated inspections to detect defects early. Companies should also adhere to ISO 13485 and FDA 21 CFR Part 820 standards to maintain product quality and compliance.
Mold Validation and Maintenance
Medical molding requires molds that are validated and maintained to prevent contamination and wear that could affect part quality. Mold validation includes Installation Qualification (IQ), Operational Qualification (OQ), and Performance Qualification (PQ) to ensure molds are fit for use in medical applications.
Cleanroom Manufacturing
To prevent contamination, many medical devices are produced in ISO-certified cleanrooms. Cleanroom standards (such as ISO 7 or ISO 8) control particulate levels, temperature, and humidity, ensuring that products remain free from contaminants.
Rapid Prototyping for Testing and Validation
Rapid prototyping, often through 3D printing, is widely used for design validation before mold creation. This practice allows engineers to test device fit, function, and form, ensuring that parts meet specifications before mass production.
Emerging Technologies for Medical Injection Molding
Additive Manufacturing (AM)
3D printing complements injection molding by allowing for rapid prototyping, customized tooling, and complex geometry creation.
AI and Machine Learning
AI can predict outcomes in the injection molding process, optimizing cycle times and identifying defects before they occur.
Digital Twins
Digital twin technology simulates injection molding processes virtually, allowing manufacturers to optimize designs and processes without physical trials.
Advantages of Medical Injection Molding
Medical injection molding offers several key advantages that make it a preferred manufacturing method in the medical industry:
High Precision and Consistency: The injection molding process allows for the production of parts with tight tolerances and consistent quality, which is critical for medical applications.
Scalability: Injection molding is highly efficient for mass production, enabling manufacturers to produce large quantities of parts quickly and cost-effectively.
Material Versatility: A wide range of materials can be used, including biocompatible plastics, allowing for flexibility in product design and function.
Reduced Waste: The process generates minimal waste compared to traditional machining methods, making it more environmentally friendly.
Complex Geometries: Injection molding can produce intricate shapes that are often difficult or impossible to achieve with other manufacturing methods.
Challenges in Medical Injection Molding
Despite its advantages, medical injection molding also faces several challenges:
Regulatory Compliance: Meeting stringent regulatory requirements for medical products can be complex and time-consuming, requiring thorough testing and documentation.
Initial Costs: The upfront investment in molds and machinery can be high, making it a significant barrier for smaller manufacturers or startups.
Material Limitations: While there is a variety of materials available, not all materials are suitable for every application, particularly concerning biocompatibility and sterilization.
Technical Expertise: Successful injection molding requires specialized knowledge and expertise in design, material selection, and process optimization.
Maintenance of Equipment: Regular maintenance of injection molding machines and molds is necessary to ensure consistent quality and minimize downtime.
Conclusion
Medical injection molding is at the forefront of transforming healthcare manufacturing, offering a range of advantages that contribute to the development of innovative medical solutions. As technology advances and the industry evolves, staying informed about trends and best practices in medical injection molding will be crucial for manufacturers and healthcare providers alike.
