Quick Look

Density(g/cm³)Tensile StrengthYoung's ModulusElongation at BreakGlass Transition Temperature
1.148MPa1483MPa56%51℃
Density(g/cm³)
1.1
Tensile Strength
48MPa
Young's Modulus
1483MPa
Elongation at Break
56%
Glass Transition Temperature
51℃

About the Material

Advantages:

  1. Flexibility and Toughness: Nylon 11 provides good elongation at break, making it suitable for parts that need flexibility and toughness.

  2. Chemical Resistance: Nylon 11 is resistant to a wide range of chemicals, making it suitable for industrial applications.

  3. Biocompatibility: The biocompatible nature of Nylon 11 makes it suitable for medical and wearable applications.

  4. Sustainable: Derived from castor oil, Nylon 11 is a more sustainable option compared to petroleum-based materials.

Limitations:

  1. Lower Stiffness: Compared to Nylon 12, Nylon 11 has lower stiffness, which may limit its use in load-bearing applications.

  2. Cost: Nylon 11 is generally more expensive compared to other nylon materials, which may affect its adoption for cost-sensitive projects.

  3. Surface Finish: Parts may require additional post-processing to achieve a polished surface due to slight porosity.

Chemical Composition Table for Black Nylon 11

ComponentComposition
Nylon 11100%
Additives (Colorants)None

Mechanical Machining Properties Table for Black Nylon 11

PropertyValue
Machinability RatingModerate
Cutting Speed (m/min)15-25
Tool Wear ResistanceModerate
Coolant RequirementOptional
Surface Finish QualityModerate

Design Parameters Table for SLS Printing with Black Nylon 11

Maximum Bulid Size（mm）Minimum Wall ThicknessMinimum Drill SizeMinimum Assembly GapTolerance
190*240*3100.8mm1mm0.2mm±0.3%   *Length(lower limit of ±0.2 mm)

Industry Applications and Case Studies for SLS Printing with Black Nylon 11

  1. Medical Industry:

    • Application: In the medical industry, Black Nylon 11 is often used to create personalized implants, surgical tools, and prosthetics.

    • Case Study: A medical device manufacturer collaborated with medical companies to print patient-specific surgical tools and implants using Nylon 11.

  2. Consumer Goods:

    • Application: From footwear to eyewear, Black Nylon 11’s flexibility and strength are utilized in producing customizable consumer products.

    • Case Study: A consumer goods company used SLS 3D printing with Black Nylon 11 to develop customized footwear components.

  3. Industrial Equipment:

    • Application: SLS printing with Black Nylon 11 is used in the production of custom machinery parts, such as gears, bearings, and housings.

    • Case Study: A manufacturing company utilizes SLS printing to produce functional prototypes and end-use parts for their turbines and engines.

Frequently Asked Questions (FAQs) about SLS Printing with Black Nylon 11

  1. What are the benefits of using Black Nylon 11 in 3D printing?

    • Black Nylon 11 offers high flexibility, impact resistance, chemical resistance, and biocompatibility, making it ideal for functional parts and medical applications.

  2. Is Black Nylon 11 suitable for functional parts?

    • Yes, Black Nylon 11 is suitable for functional parts that require flexibility, toughness, and chemical resistance.

  3. What industries benefit from SLS printing with Black Nylon 11?

    • Industries such as medical, consumer goods, and industrial manufacturing benefit from the versatility and flexibility of Black Nylon 11.

  4. How accurate is SLS printing with Black Nylon 11?

    • SLS printing with Black Nylon 11 can achieve tolerances of ±0.3 mm, suitable for most functional applications.

  5. What post-processing is required for Black Nylon 11-printed parts?

    • Post-processing may include bead blasting, polishing, or dyeing to improve the surface finish and appearance.

  6. Can Black Nylon 11 be used in high-temperature environments?

    • Black Nylon 11 has a heat deflection temperature of 95°C, making it suitable for moderate-temperature applications but not for high-heat environments.

  7. How strong are Black Nylon 11-printed parts?

    • Black Nylon 11-printed parts are strong, flexible, and durable, making them suitable for functional applications that require impact resistance and toughness.

Finishing Options

Name
Colors
Can Be Applied with
Provides a colored matte finish, versatile across many materials, moderate durability.
Paint Matte
Wide range of colors available (e.g., black, white, gray, blue, red, etc.)
Provides a colored matte finish, versatile across many materials, moderate durability.
Sand Blasting
-
Provides a uniform surface texture.

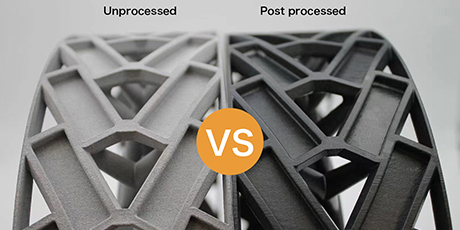

Vapor Smooth A common post-processing step performed on SLS to improve porosity, reduce roughness, and improve the look and feel.
Vapor Smooth
A common post-processing step performed on SLS to improve porosity, reduce roughness, and improve the look and feel.
Creates a thin layer of magnetite on the surface of metal parts, giving them a black or dark gray appearance.
Dye Black
Creates a thin layer of magnetite on the surface of metal parts, giving them a black or dark gray appearance.
Provides a colored matte finish, versatile across many materials, moderate durability.
Name
Paint Matte
colors
Wide range of colors available (e.g., black, white, gray, blue, red, etc.)
Can Be Applied with
Provides a colored matte finish, versatile across many materials, moderate durability.
Name
Sand Blasting
colors
-
Can Be Applied with
Provides a uniform surface texture.
Vapor Smooth A common post-processing step performed on SLS to improve porosity, reduce roughness, and improve the look and feel.
Name
Vapor Smooth
colors
Can Be Applied with
A common post-processing step performed on SLS to improve porosity, reduce roughness, and improve the look and feel.
Creates a thin layer of magnetite on the surface of metal parts, giving them a black or dark gray appearance.
Name
Dye Black
colors
Can Be Applied with
Creates a thin layer of magnetite on the surface of metal parts, giving them a black or dark gray appearance.
1 / 4

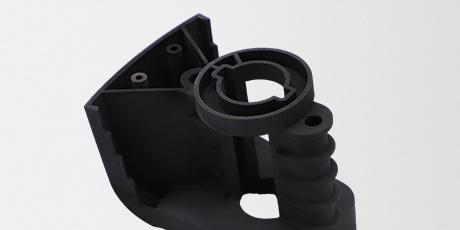

Parts Made by AutofabX
