Overview

What is Multi Jet Fusion (MJF)?

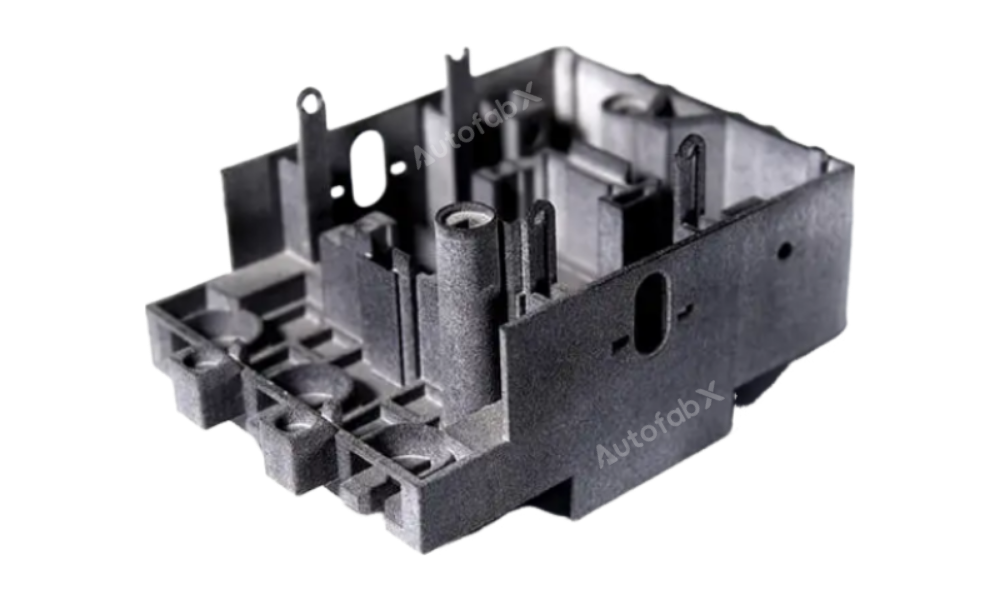

Multi Jet Fusion (MJF) is an advanced 3D printing technology developed by HP that uses a multi-agent printing process to create high-quality, functional parts from powdered materials. MJF is known for its fast production speed, fine detail, and the ability to produce parts with excellent mechanical properties and consistent quality.

Why Choose AutofabX for MJF Services?

AutofabX offers high-quality MJF printing services with several key benefits:

1. High Precision and Consistency: Our MJF printers produce parts with high accuracy and consistent mechanical properties across the entire build.

2. Material Versatility: AutofabX offers a range of high-performance thermoplastics, suitable for functional prototyping and production-grade parts.

3. Cost-Effective for Batch Production: MJF is ideal for both prototyping and low-to-medium volume production, offering competitive pricing compared to traditional manufacturing methods.

4. Expert Guidance: Our team provides design optimization for additive manufacturing, ensuring the best possible results for your MJF projects.

How Multi Jet Fusion Works

1. Design: The process begins with a 3D CAD model, which is prepared in slicing software to create a layer-by-layer plan.

2. Powder Layering: A thin layer of powder material is spread across the build platform.

3. Printing Agents: The print head deposits fusing and detailing agents onto the powder bed. The fusing agent helps to bond the powder, while the detailing agent defines fine features and improves surface quality.

4. Heating and Fusing: Infrared lamps pass over the powder bed, fusing the areas where the fusing agent was applied.

5. Layering: The process is repeated layer by layer until the part is complete.

6. Cooling and Post-Processing: Once the print is complete, the part is cooled, and excess powder is removed. Post-processing may include bead blasting, dyeing, or other finishing steps.

Main Equipment for MJF Printing and Popular Brands

1. HP Jet Fusion 5200 Series: Known for its high speed, reliability, and ability to produce strong, functional parts.

2. HP Jet Fusion 4200 Series: Offers excellent precision and material versatility, ideal for prototyping and small batch production.

Advantages and Limitations of MJF Printing

Advantages:

1. High Detail and Accuracy: MJF produces parts with excellent surface finish and fine detail, suitable for complex geometries.

2. Consistent Mechanical Properties: Parts printed with MJF have uniform mechanical properties, which makes them suitable for functional applications.

3. Fast Production: MJF can produce parts faster than many other 3D printing technologies, making it ideal for rapid prototyping and production.

4. No Support Structures: MJF builds parts within a powder bed, which eliminates the need for support structures and allows for more complex designs.

Limitations:

1. Material Limitations: MJF currently supports a limited range of thermoplastic materials, primarily nylon-based powders.

2. Post-Processing Requirements: Parts may require additional post-processing, such as cleaning, bead blasting, or dyeing, to achieve the desired finish.

3. Cost for Low Volumes: MJF can be cost-effective for batch production, but for very low quantities, it may be less economical compared to other 3D printing methods like FDM.

Industry Applications and Case Studies for MJF Printing

1. Automotive Industry:

• Application: Production of functional prototypes and end-use components.

• Case Study: An automotive manufacturer used MJF to produce air duct prototypes, allowing for rapid design iterations and functional testing before final production.

2. Consumer Goods:

• Application: Manufacturing of customized parts and accessories.

• Case Study: A consumer products company used MJF to create custom-fit wearables, providing fast turnaround and personalization options for customers.

3. Healthcare Industry:

• Application: Production of medical devices, orthotics, and prosthetics.

• Case Study: A healthcare provider used MJF to produce custom orthotic devices, ensuring a perfect fit for patients and reducing lead times compared to traditional methods.

Quality Control Standards and Inspection Methods for MJF Printing

1. Dimensional Inspection

• Tools: Calipers and Coordinate Measuring Machines (CMM) are used to verify the dimensions of printed parts.

2. Surface Finish Inspection

• Techniques: Visual inspection and surface roughness testers are used to ensure that parts meet the required surface quality.

3. Mechanical Property Testing

• Methods: Tensile and flexural tests are conducted to assess the strength and durability of printed parts.

MJF Printing Design Guidance Table

MJF Printing Precision Table

Frequently Asked Questions (FAQs) about MJF Printing

1. What materials can be used in MJF printing?

• MJF primarily uses nylon-based powders, such as PA12, PA11, and TPU, suitable for functional prototypes and end-use parts.

2. Is MJF printing suitable for functional parts?

• Yes, MJF produces parts with consistent mechanical properties, making it ideal for functional prototypes and end-use applications.

3. What industries benefit from MJF printing?

• Industries such as automotive, consumer goods, and healthcare benefit from the precision, speed, and material properties offered by MJF printing.

4. How accurate is MJF printing?

• MJF printing can achieve tolerances of ±0.3 mm, which is suitable for many functional and prototyping applications.

5. What post-processing is required for MJF-printed parts?

• Post-processing may include cleaning, bead blasting, dyeing, or other finishing steps to improve appearance and functionality.

6. Can MJF print flexible parts?

• Yes, MJF can print with TPU, a flexible material, which is useful for applications requiring elasticity.

7. How strong are MJF-printed parts?

• MJF-printed parts are strong and durable, with consistent mechanical properties throughout the part, making them suitable for functional use.
