Overview

What is PolyJet Printing?

PolyJet is a 3D printing technology that uses inkjet technology to layer liquid photopolymer, which is then cured with UV light to create highly detailed and complex parts. It offers a range of materials and can print multi-material objects in a single build, making it ideal for producing realistic prototypes and intricate designs.

Why Choose AutofabX for PolyJet Services?

AutofabX offers high-quality PolyJet printing services with several advantages:

1. Precision and Detail: Our advanced PolyJet printers produce parts with high resolution and fine details, suitable for intricate designs.

2. Multi-Material Capabilities: AutofabX provides the ability to print with multiple materials, allowing for varied textures, colors, and properties in a single print.

3. Expert Support: Our team assists in optimizing designs for PolyJet printing, ensuring the best results in terms of quality and accuracy.

4. Fast Turnaround: We offer a quick production process, enabling clients to receive their parts rapidly for faster project timelines.

How PolyJet Printing Works

1. Design: A 3D model is created using CAD software.

2. Preparation: The model is prepared in slicing software to determine the layer-by-layer path for printing.

3. Printing: The printer jets liquid photopolymer droplets onto the build tray, layer by layer. UV lights immediately cure the material as each layer is deposited.

4. Post-Processing: The printed part may require support material removal and surface finishing, depending on the application.

Main Equipment for PolyJet Printing and Popular Brands

1. Stratasys J-Series: Known for high-resolution and multi-material printing capabilities.

2. Objet30 Pro: Ideal for prototyping with a range of materials and offering high precision.

Advantages and Limitations of PolyJet Printing

Advantages:

1. High Resolution: PolyJet can produce extremely fine details with layer thickness as low as 16 microns.

2. Multi-Material Printing: Allows printing of different materials, colors, and textures in a single part.

3. Smooth Surface Finish: Parts produced with PolyJet have smooth surfaces, requiring minimal post-processing.

4. Speed: The printing process is relatively fast, making it suitable for rapid prototyping.

Limitations:

1. Material Properties: Parts printed with PolyJet may not be as strong or durable as those produced with other methods like SLS or DMLS.

2. Cost: PolyJet materials can be expensive, and multi-material prints may incur higher costs.

3. Support Removal: Removing support material from intricate designs can be challenging and time-consuming.

Industry Applications and Case Studies for PolyJet Printing

1. Medical Industry:

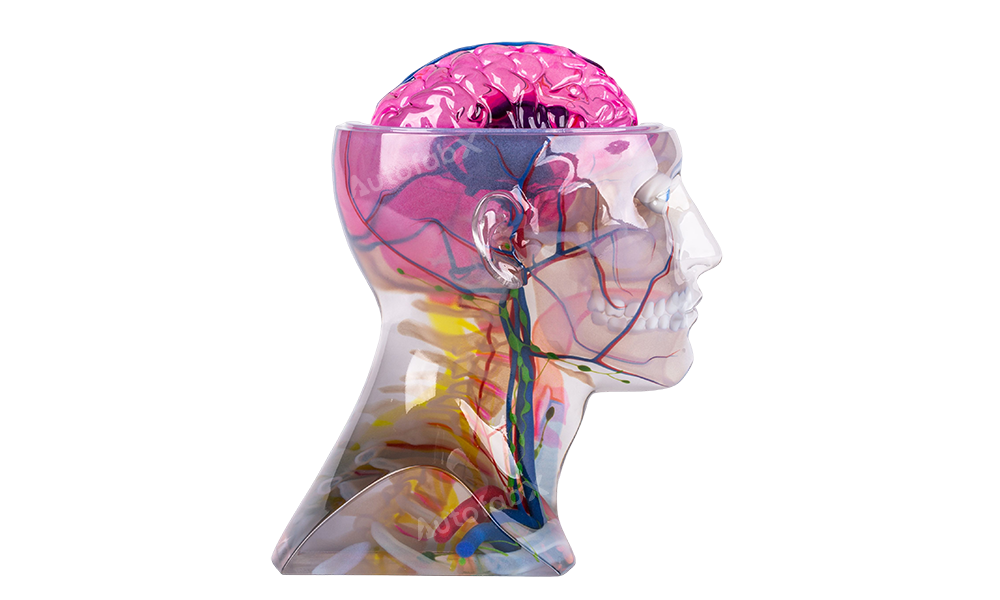

• Application: Production of realistic anatomical models for surgical planning and training.

• Case Study: A medical center used PolyJet printing to create patient-specific anatomical models, enabling surgeons to better prepare for complex procedures.

2. Consumer Goods:

• Application: Prototyping of consumer products with varying textures and colors.

• Case Study: A consumer goods company used PolyJet to prototype a new product line, allowing them to evaluate design and aesthetics before mass production.

3. Automotive Industry:

• Application: Manufacturing of concept models and functional prototypes.

• Case Study: An automotive manufacturer utilized PolyJet printing to create detailed concept models of car interiors, helping designers make informed decisions on aesthetics and ergonomics.

Quality Control Standards and Inspection Methods for PolyJet Printing

1. Dimensional Inspection

• Tools: Vernier calipers and Coordinate Measuring Machines (CMM) are used to verify the dimensions of printed parts.

2. Surface Finish Inspection

• Techniques: Visual inspection and surface roughness testers are used to ensure that parts meet the required surface finish standards.

3. Material Property Testing

• Methods: Tensile and flexural testing are conducted to ensure the printed parts meet mechanical property requirements.

PolyJet Printing Design Guidance Table

PolyJet Printing Precision Table

Frequently Asked Questions (FAQs) about PolyJet Printing

1. What materials can be used in PolyJet printing?

• PolyJet printing can use a variety of photopolymers, including rigid, flexible, transparent, and multi-color materials.

2. Is PolyJet printing suitable for functional parts?

• PolyJet is primarily used for prototyping and aesthetic models. Functional parts may require additional considerations due to the material properties.

3. What industries benefit from PolyJet printing?

• Industries such as medical, automotive, and consumer goods benefit from the high resolution and multi-material capabilities of PolyJet printing.

4. How accurate is PolyJet printing?

• PolyJet printing can achieve high accuracy, typically around ±0.05 mm, making it suitable for intricate designs.

5. What post-processing is required for PolyJet-printed parts?

• Post-processing may include support material removal, cleaning, and surface finishing to achieve the desired appearance.

6. Can PolyJet print multi-material parts?

• Yes, PolyJet can print with multiple materials, allowing for varied textures, colors, and mechanical properties within a single part.

7. How strong are PolyJet-printed parts?

• PolyJet-printed parts are suitable for visual and functional prototypes but may lack the strength required for heavy-duty applications.
